AI Pedestrian Detection System Vehicle AI Camera System

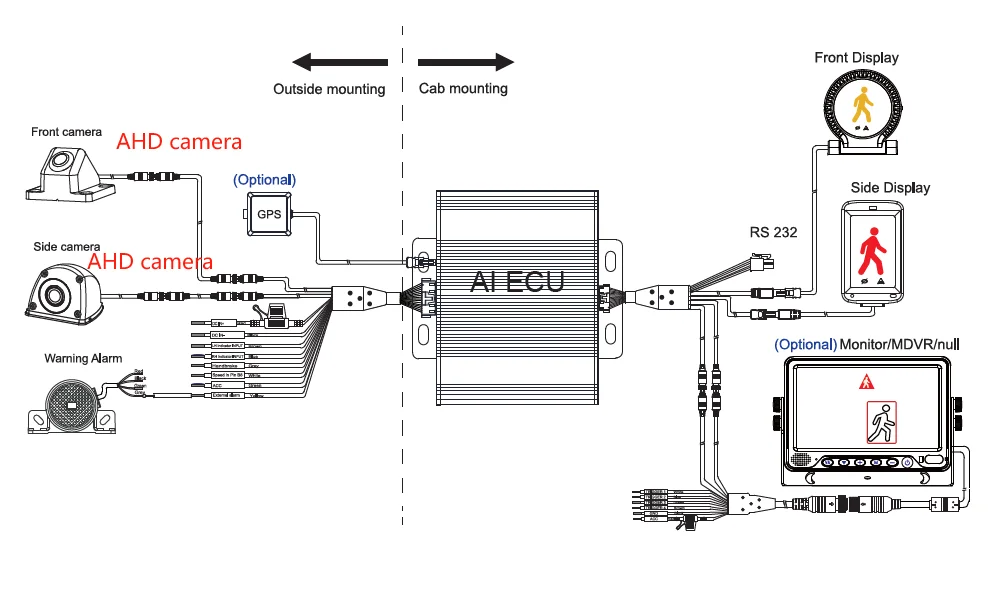

AI Pedestrian detection system uses two general AHD cameras and an AI ECU to detect, track, and analyze VRU (Pedestrian and cyclist) movement trends. It only alerts audio warnings at high collision risk to reduce unnecessary warnings

  Blind area problems of large vehicles have attracted particular attention in the world. In order to reduce driving accidents caused by Blind Spot Are] and Difference of Radius Between Inner Wheel, the European Union passed the Road Safety Regulation on November 27, 2019. This regulation is applicable to the N2 and N3, M2 and M3 vehicles, and would become the standard in the commercial vehicle (BSIS and MOIS). The United Kingdom passed PSS (progressive Safe System) for vehicles over 12T in 2023. Elitek AI Pedestrian Detection system, with AI technology, assists in enhancing road safety and protecting vulnerable road users (VRU). The camera can detect pedestrians, cyclists, and vehicles at the front and side of the vehicle, and provide real-time visual and audio alarms to remind drivers of potential dangers.

  Features:

 1. 4TOPS NPU: Supports a relative pedestrian movement trend analysis algorithm to reduce invalid alarms.

 2. Sony Starvis Image Sensor: It stands out for its exceptional low-light performance, enabling the capture of remarkable clear and detailed images even in challenging nighttime environments. This mitigates the prevalent challenge of inadequate nighttime performance in current camera solutions.

3. 6-Axis Gravity Sensor: supports sharp acceleration, deceleration, turning, and collision detection.

4. GPS Module or Tachograph B8: Supports external access to the GPS module or B8 interface of the Tachograph for obtaining speed signals.

5. Ultra-Wide Angle: Front and side cameras offer a HFOV of 150°.

6. Camera Resolution Support: Supports both 720P and 1080P cameras.

7.Third-Party Monitor and MDVR: Supports third-party monitors and MDVR.

8. Built-in AI: Offers a pure video solution with simple installation, effectively and accurately detecting targets in any blind spot.

9. Semantic Segmentation Algorithm: Supports semantic segmentation algorithm, effectively identifying road edges, pavement edges, railings, and other isolation facilities to eliminate false notifications.

10. Lens-Blocking Alarm Algorithm: Supports a lens-blocking alarm algorithm, effectively detecting contaminants in the lens to ensure driving safety.

11. Dual-Side Installation: Supports installation on both

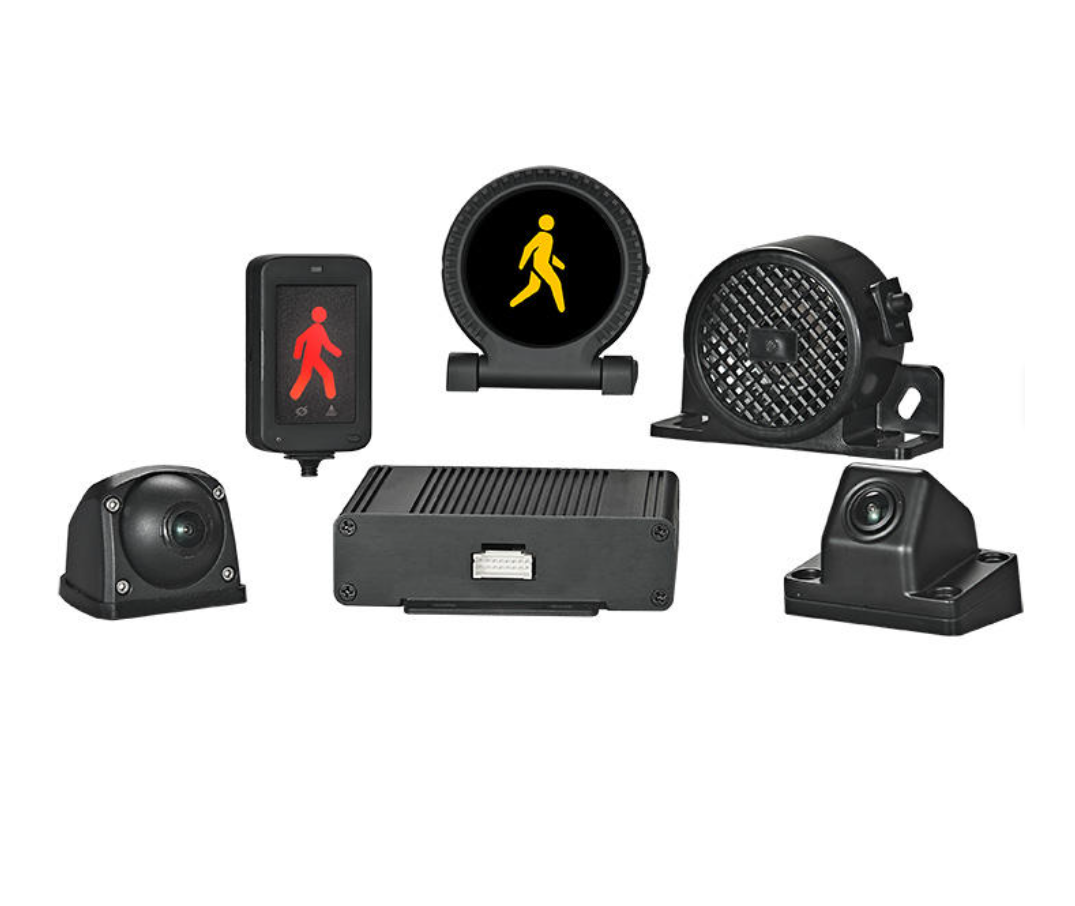

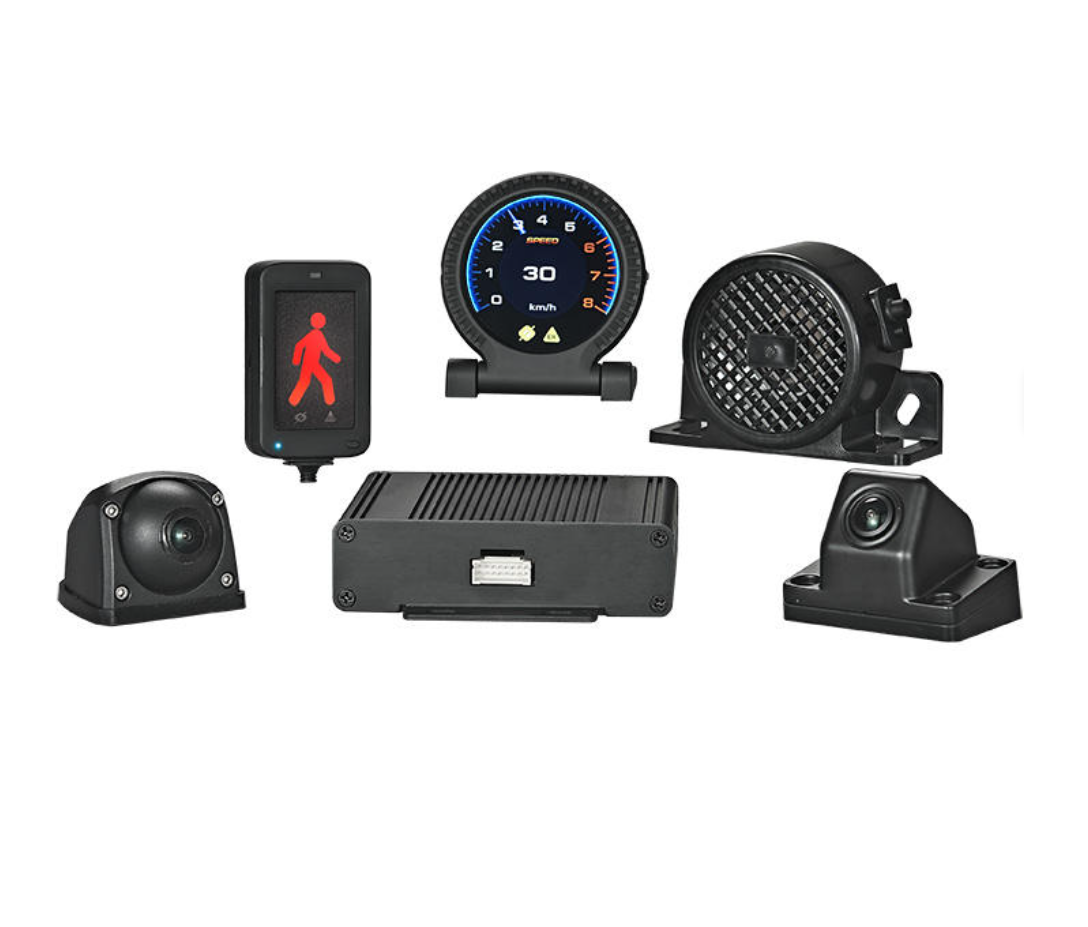

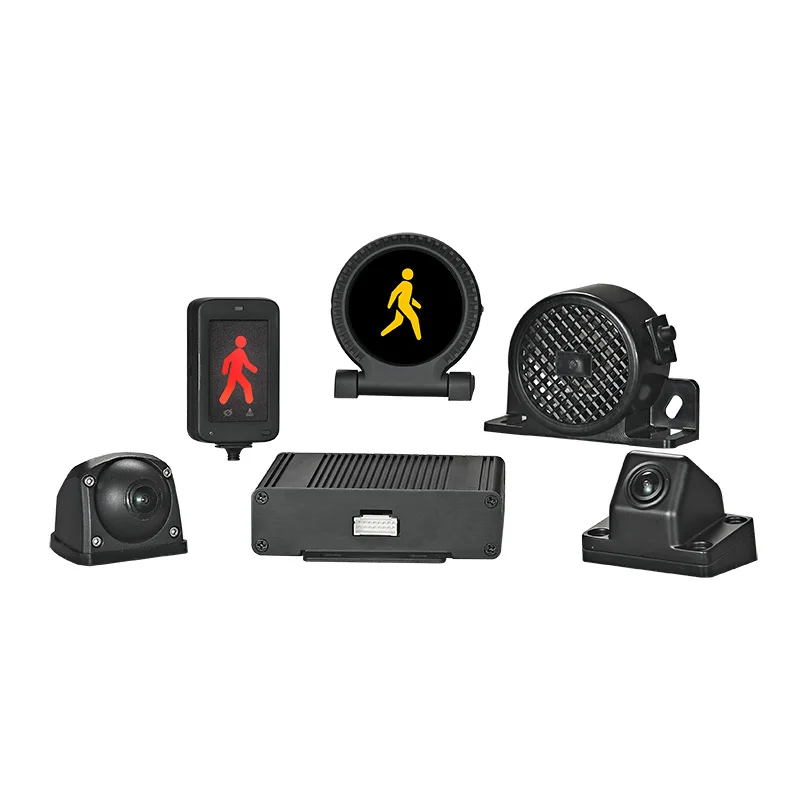

 Specifications:

1x AI ECU

1x 50cm Input Cable

1x 50cm Output Cable

1x Side Camera

1x 3m cable

1x Manual

1x Front Camera

1x 3m cable

2x Alcohol Prep Pad

2x Sticker

1x Side Display with 2.5m Cable

1x Front Display with 2.5m Cable

1x WIFI Module

1x Vehicle Safety Management system (optional)

1x GPS (optional) Our Services
