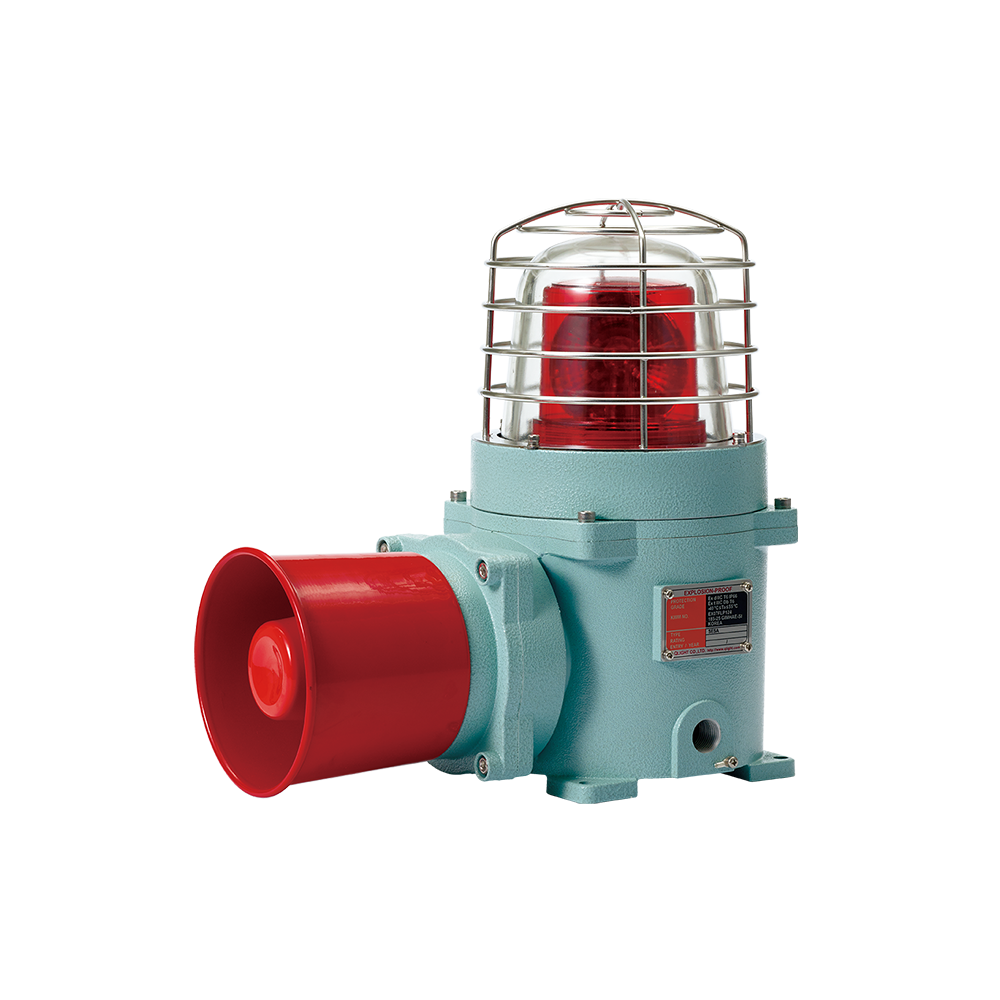

Revolving Signal Beacon & Electronic Sounder Combination Max.118dB
Product Feature
Video
- Large explosion proof signal beacon / light & electronic sounder combinations
- A variety of light sources and sound selections to fit your sophisticated application needs
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Excellent diffusion effect with special multifaceted reflector
- Revolving speed : 120-140RPM
- Sound volume : Max. 118dB at 1m(Volume adjustable)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector-PC
- Certificates : IECEx, ATEX, NEPSI, KCs, CCS, CCC
- Protection rating :
IECEx - Ex db IIC T6 Gb
ATEX -
II2G Ex db IIC T6 Gb
KCs - Ex d IIB+H2 IP66 T6
NEPSI, CCC: Ex db IIC T6 Gb, Ex tb ⅢC T80℃ Db - Ambient operating temperature :
-40°C ≤ Tamb ≤ +55°C(KCs)
-40°C ≤ Tamb ≤ +60°C - Voltage AC120V: AC110V-120V, AC230V: AC220V-230V
Product Specifications
| Model number | Voltage | Current | Bulb | Sound pattern and volume |
Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no |
|||||||
| SESA | DC24V | 1.45A |
24V15W | G23 15S | 18 | • WS-5 Warning sounds : Max.118dB • WP-5 Special warning sounds : Max.118dB • WM-5 Melodies : Max.118dB • WA-5 Alarms : Max.116dB • WV-5 Customizable voices : 110-115dB |
      |
8.57kg |
 R-Red A-Amber G-Green B-Blue
|
| AC120V | 300mA |
12V15W | G23 15S | 17 | 9.27kg | ||||
| AC230V | 180mA |
12V15W | G23 15S | 17 | 9.27kg | ||||
ᆞExcellent diffusion effect with special multifaceted reflectort
ᆞRevolving speed: 120-140RPM
Sound Tone Combination of Standard Product
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds |
Fire.A-ANG
Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion |
||
| 5 Special Warning Sounds (1st Group) |
Fire.A-ANG
Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long |
||
| 5 Melodies |
Sweet Home
For Elise Cuckoo's Waltz Piano Sonata Turkish March |
||
| 5 Alarms |
Beep Intermittent
Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat |
||
| 5 Customizable voices |
Customized sound
|
