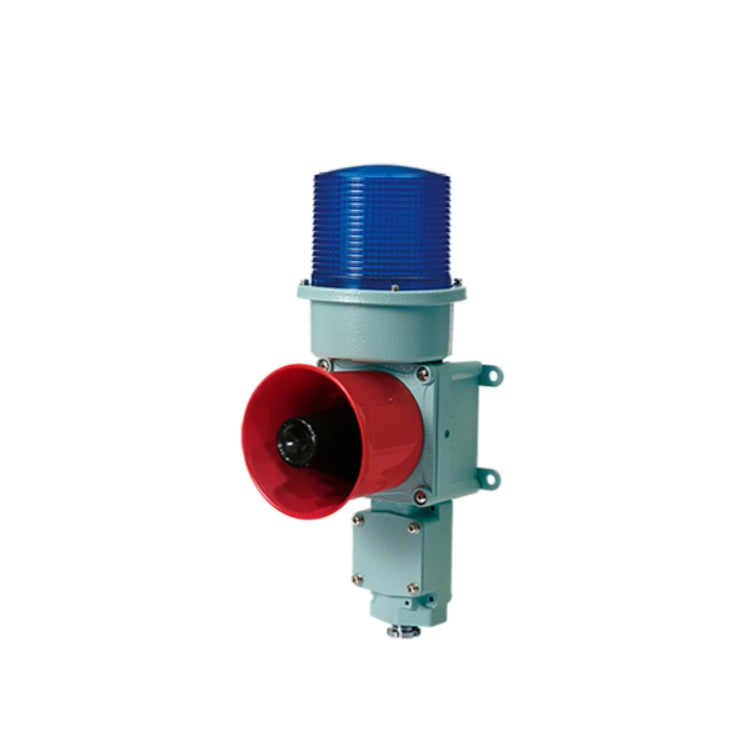

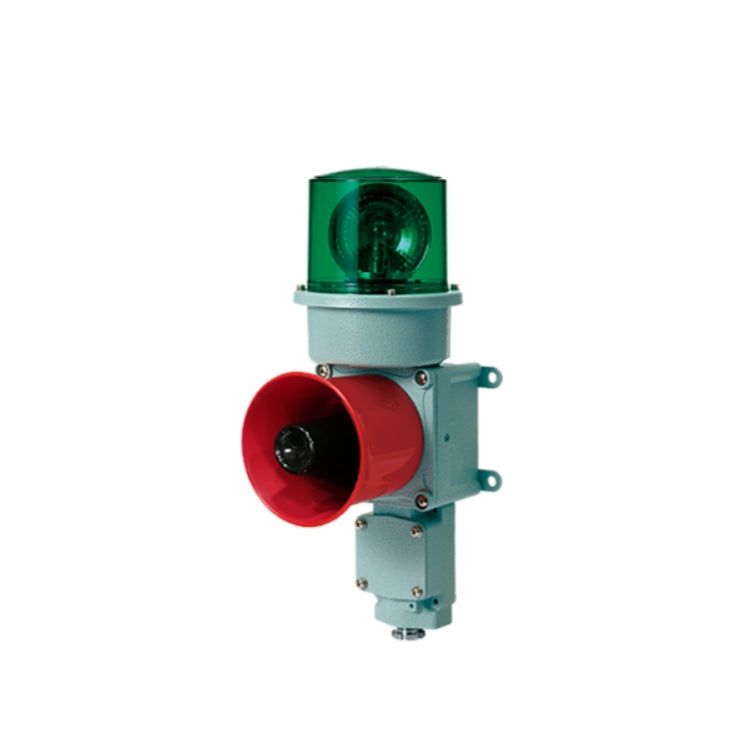

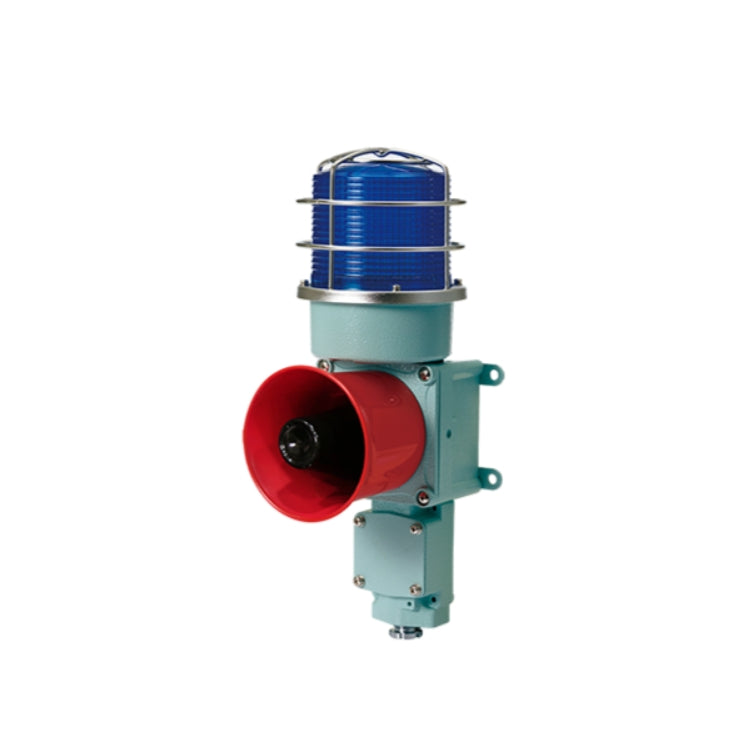

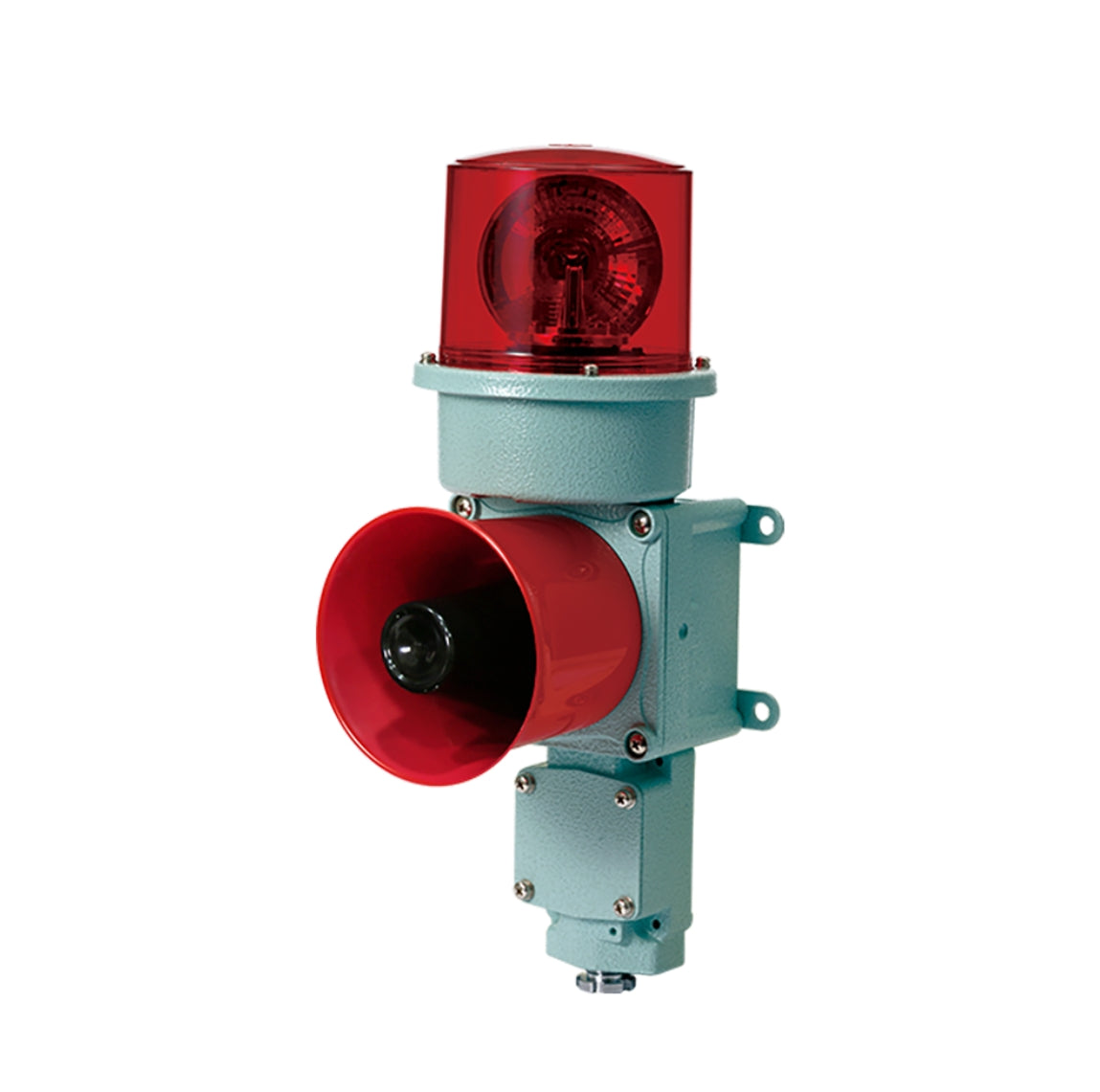

Heavy Duty Signalings Weatherproof Signal Beacons Electronic Sounder for Vessels and Heavy Industry Applications SED/SD/SMD Series

SED / SD / SMD Series

Wall mount Signal Beacon and Electronic Sounder combinations featuring superior durability, tight seal, and corrosion
resistance, designed for vessels and heavy Industrial applications

Materials Lens-PC, Housing-Al, Protection cage-STS316L,
Reflector-PC, Reflector-Heat resistant ABS
Cable entry 1/2″ PF
Protection rating IP66
Housing standard color MUNSELL No. 7.5BG 7/2

• Wall mount Signal Beacon and Electronic Sounder combinations for vessels and heavy
  industrial applications
  - Aluminum housing and polycarbonate lens material provides excellent impact
  and shock resistance
  - Excellent hermetic structure that block water and dust
  - Can select a variety of light source(bulb, LED, xenon lamp) and sound pattern
  combination
  - Attached terminal box enables easy wiring
  - Can adjust sound volume and select sound pattern with the switches built inside
  the products

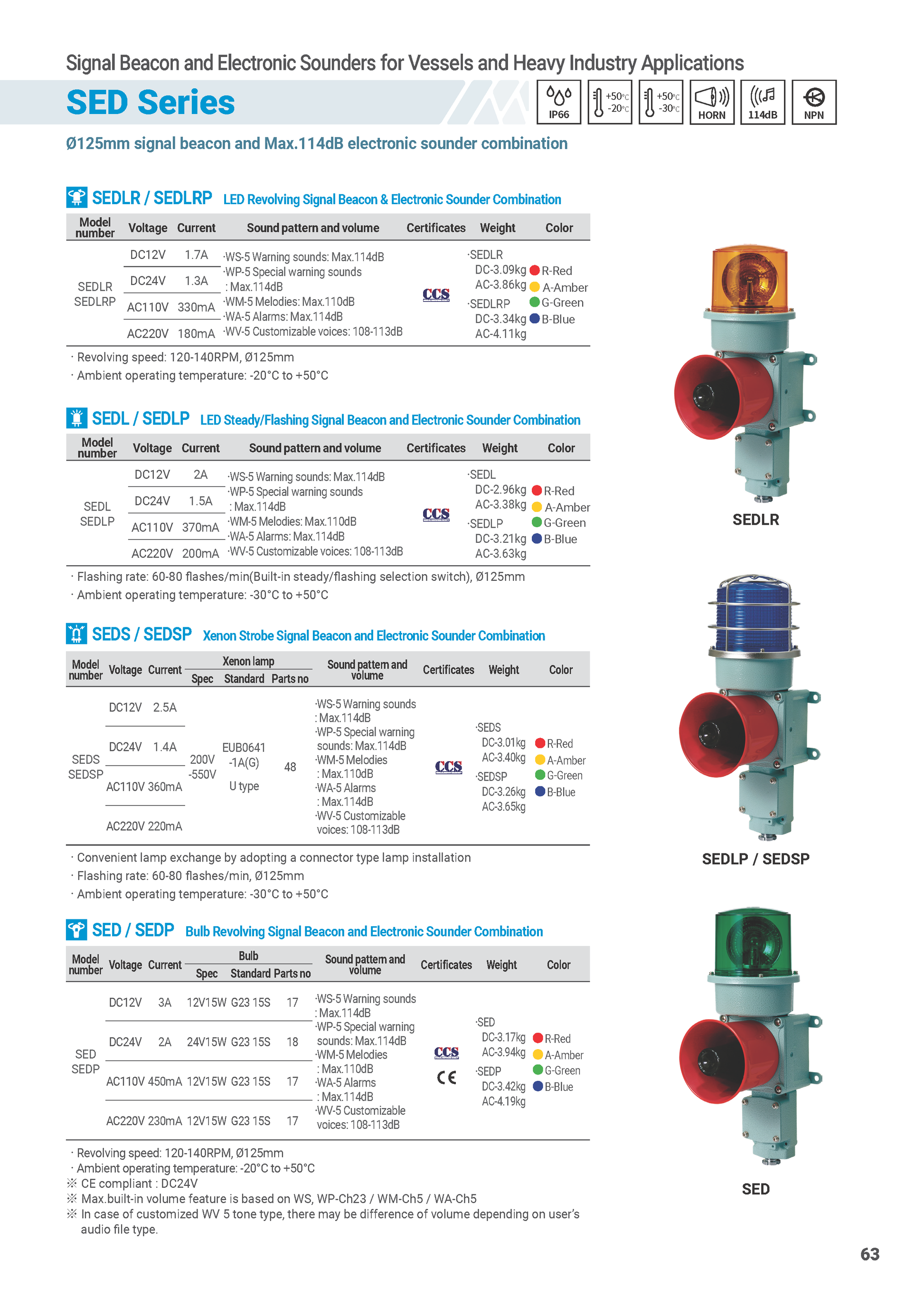

• ㆍSED Series Ø125mm signal beacon & electronic sounder with Max.114dB sound output
  ㆍSD Series Ø150mm signal beacon & electronic sounder with Max.114dB sound output
  ㆍSMD Series Ø150mm signal beacon & electronic sounder with Max.120dB sound output
