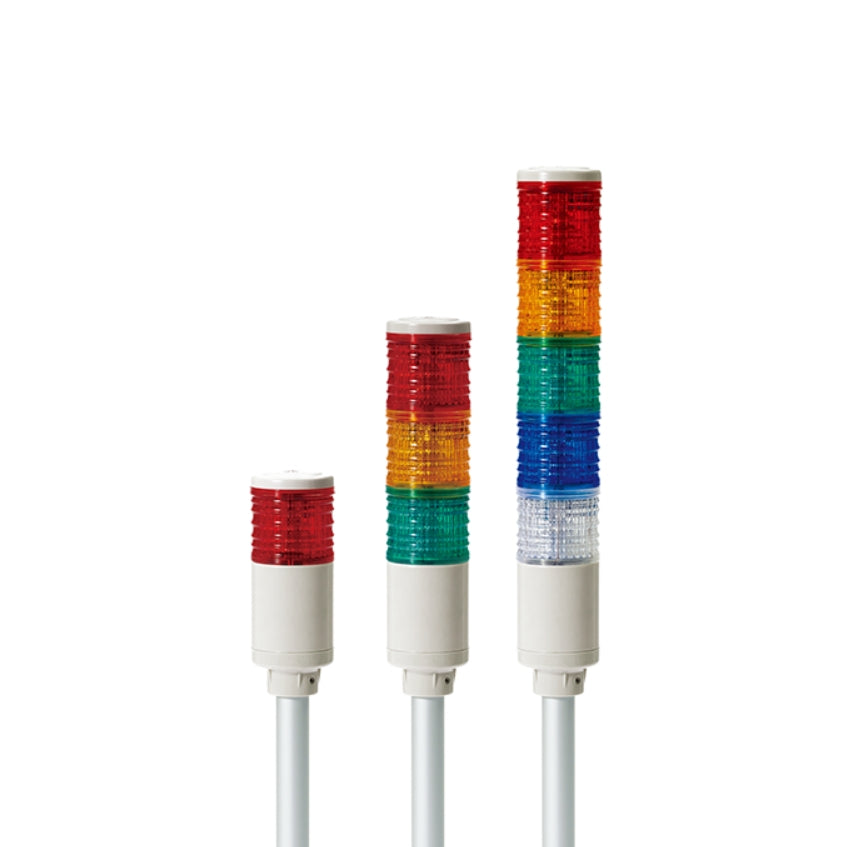

Signal Tower Lights ST Series ST45L Ø45mm Pole Mount Type LED Steady/Flashing Tower Lights Max.90dB

ST45L

Ø45mm Pole Mount Type
LED Steady/Flashing Tower Lights
Max.90dB

• Product Feature

  Built-in buzzer type (Max. 90dB at 1m), Built-in alarm type (Max. 85dB at 1m)

• Voltage

  DC:12V,24V│AC:110V,220V,12V,24V

• Dimension

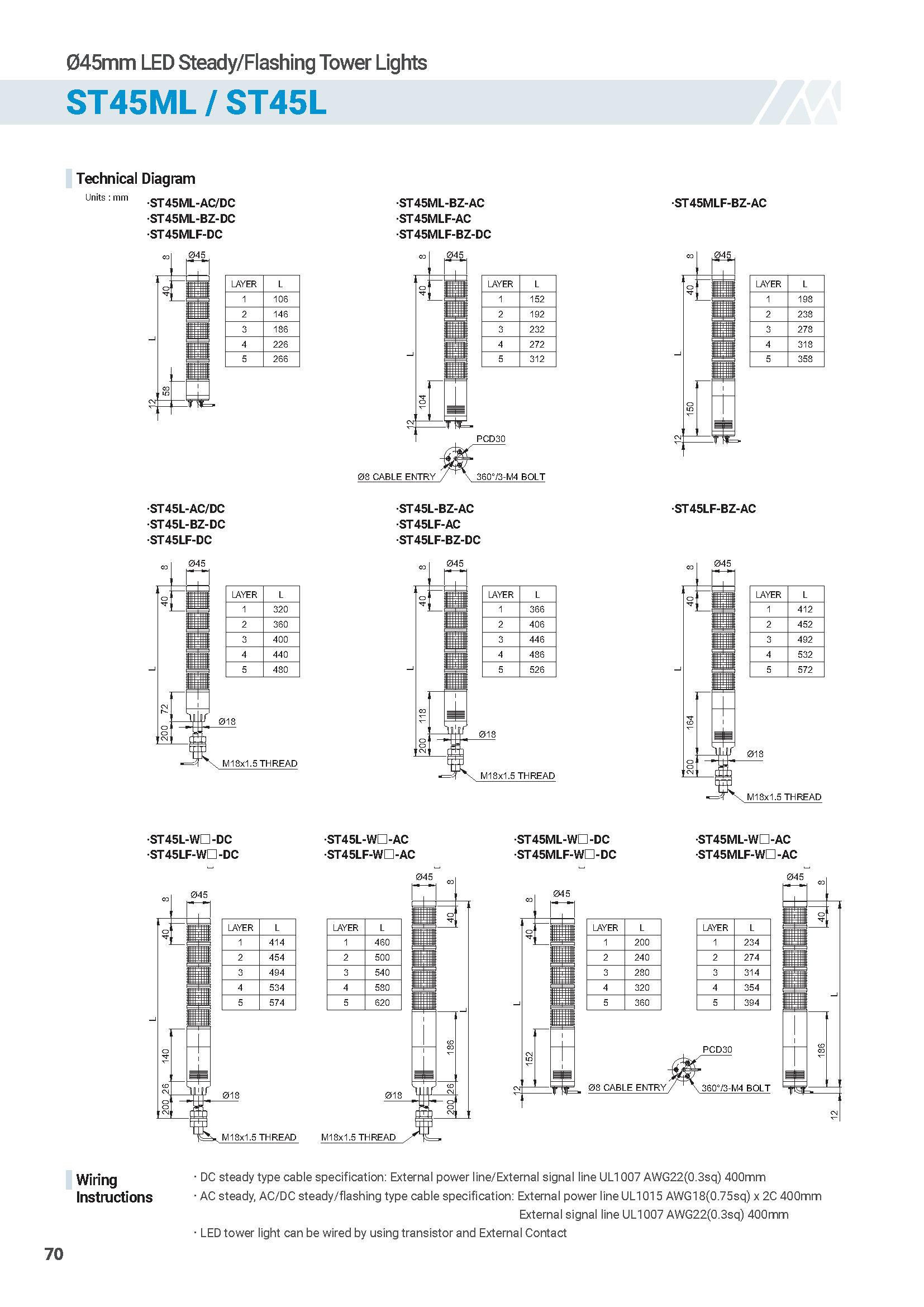

  Diameter : Ø45mm │Height : │320-572

• Materials

  Lens-AS │Housing-ABS │Pole-Al

• Protection rating

  IP44 (Standard)│IP23 (Buzzer type)

• Certificate

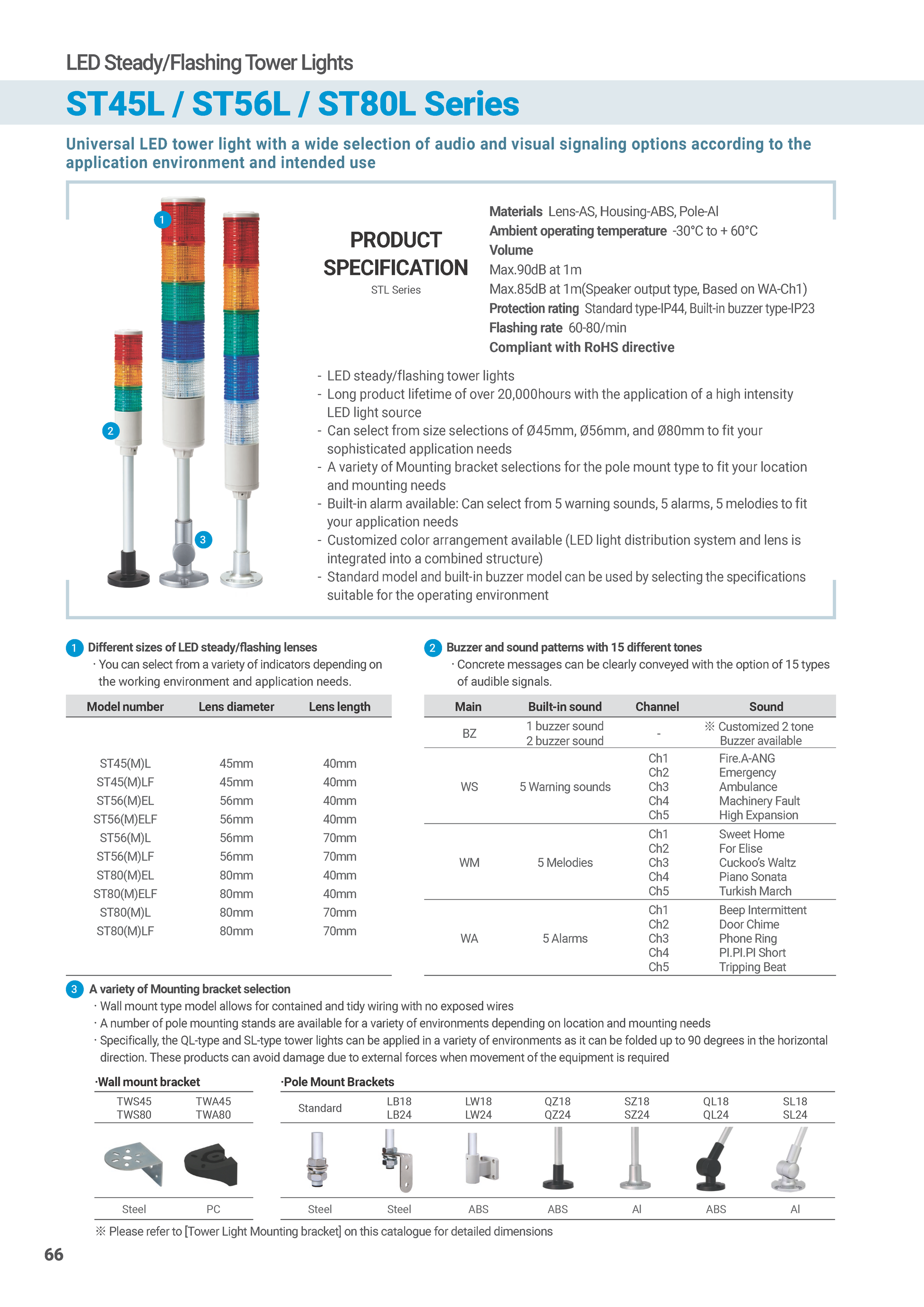

Product Feature

• LED steady/flashing tower lights
• Long product lifetime of over 20,000hours with the application of a high intensity LED light source
• Can select from size selections of Ø45mm, Ø56mm, and Ø80mm to fit your sophisticated application needs
• A variety of Mounting bracket selections for the pole mount type to fit your location and mounting needs
• Built-in alarm available: Can select from 5 warning sounds, 5 alarms, 5 melodies to fit your application needs
• Customized color arrangement available (LED light distribution system and lens is integrated into a combined structure)
• Standard model and built-in buzzer model can be used by selecting the specifications suitable for the operating environment
• Flashing rate : 60-80 flashes/min
• 24VDC UL listed model is optionally provided
• Compliant with RoHS directive

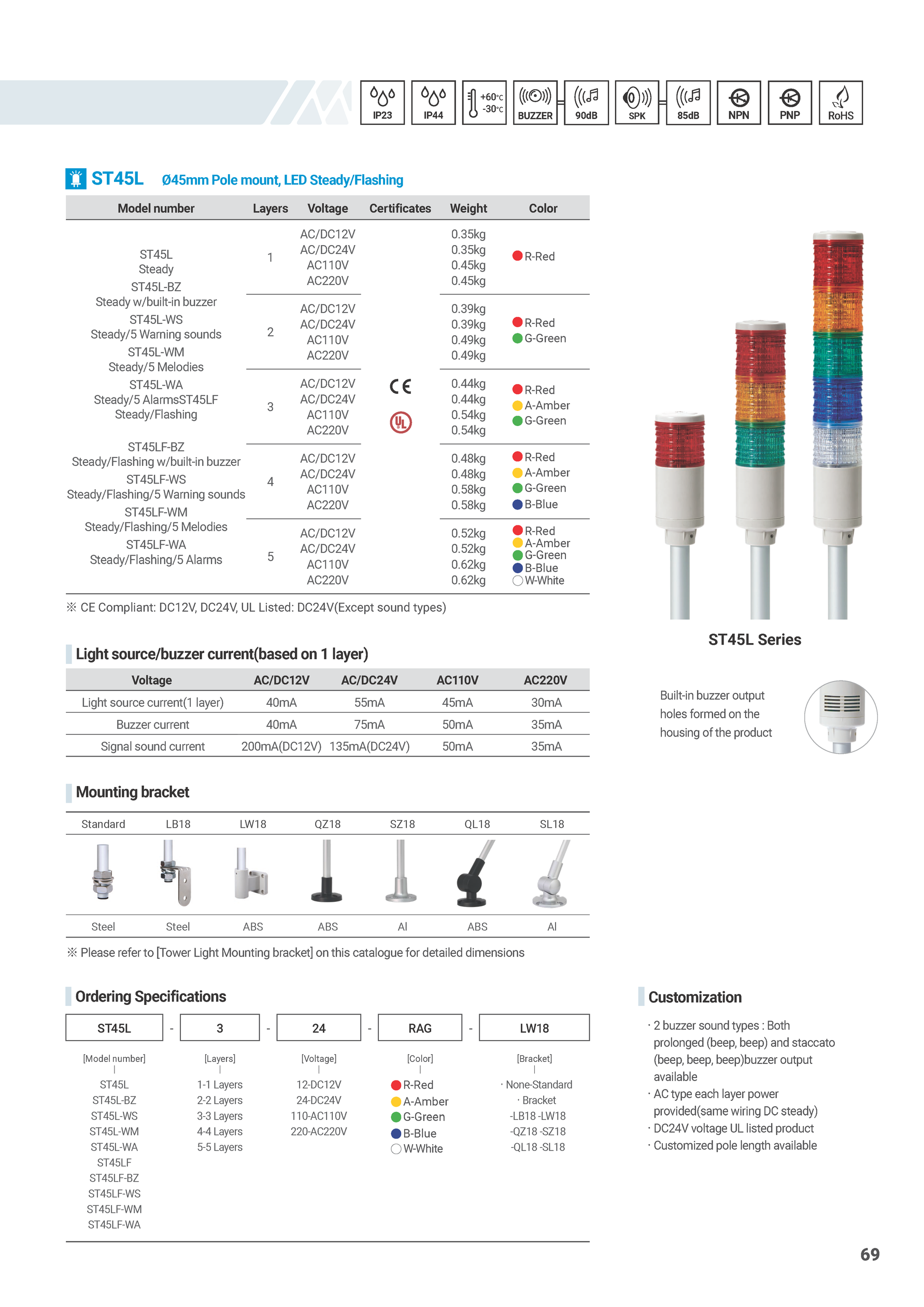

Model number	Layer	Voltage	Certificates	Weight	Color
ST45L Steady ST45L-BZ Steady w/ built-in buzzer ST45L-WS Steady/5 Warning sounds ST45L-WM Steady/5 Melodies ST45L-WA Steady/5 Alarms ST45LF Steady/Flashing ST45LF-BZ Steady/Flashing w/ built-in buzzer ST45LF-WS Steady/Flashing/5 Warning sounds ST45LF-WM Steady/Flashing/5 Melodies ST45LF-WA Steady/Flashing/5 Alarms	1	AC/DC12V AC/DC24V AC110V AC220V		0.35kg 0.35kg 0.45kg 0.45kg	R-Red
	2	AC/DC12V AC/DC24V AC110V AC220V		0.39kg 0.39kg 0.49kg 0.49kg	R-Red  G-Green
	3	AC/DC12V AC/DC24V AC110V AC220V		0.44kg 0.44kg 0.54kg 0.54kg	R-Red  A-Amber  G-Green
	4	AC/DC12V AC/DC24V AC110V AC220V		0.48kg 0.48kg 0.58kg 0.58kg	R-Red  A-Amber  G-Green  B-Blue
	5	AC/DC12V AC/DC24V AC110V AC220V		0.52kg 0.52kg 0.62kg 0.62kg	R-Red  A-Amber  G-Green  B-Blue  W-White
